BT Pull Claw

You are here: Home > Spindle Pull Claw > BT Pull Claw

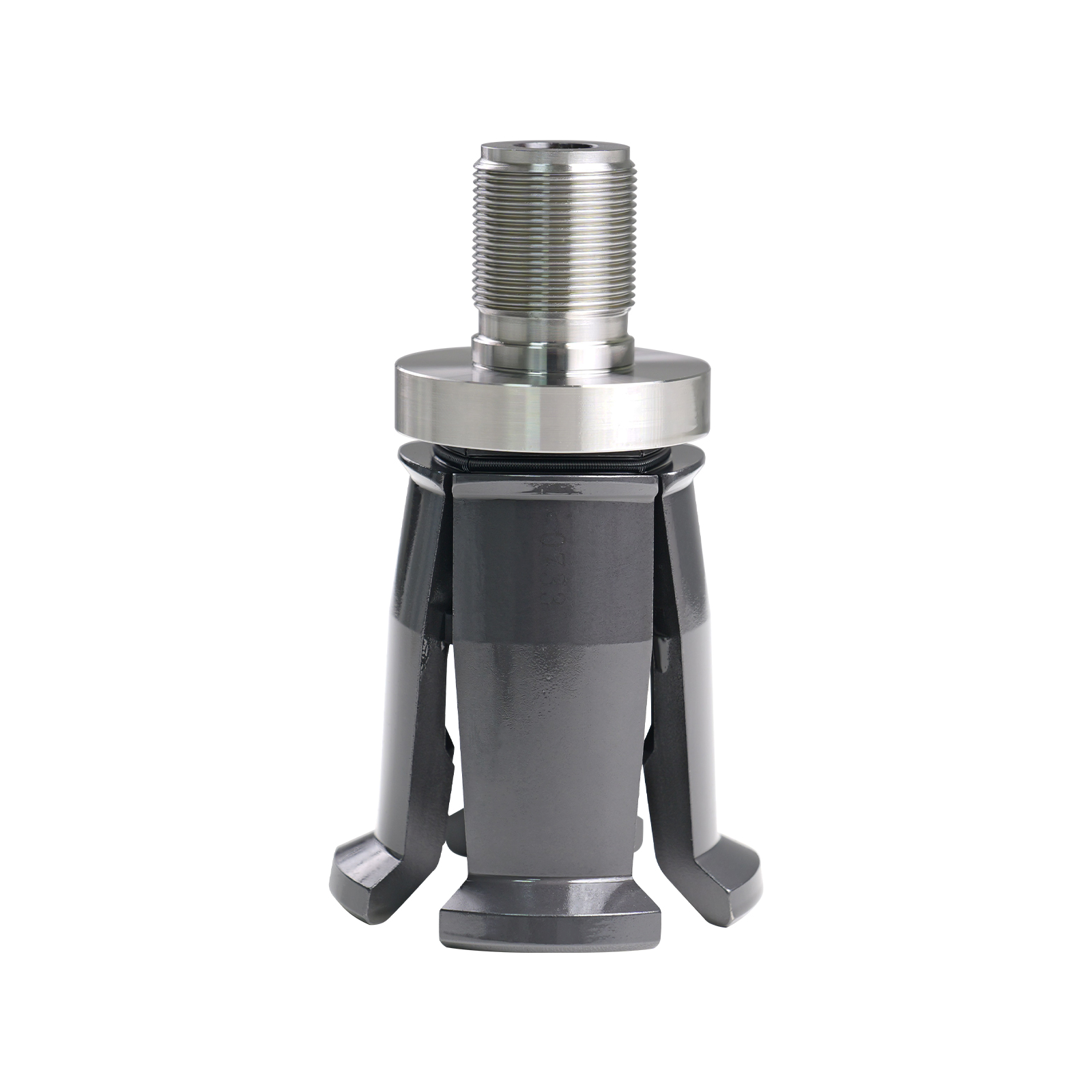

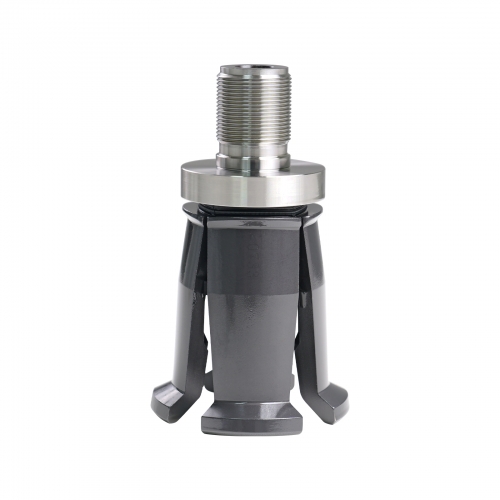

SFX BT30/BT40/BT50/BT60 DIN40/50/60 CAT40 CAT50 External Thread CNC Spindle Pull Claw Four-petal Claw for Clamping Tool Holder

SFX BT30/BT40/BT50/BT60 DIN40/50/60 CAT40 CAT50 External Thread CNC Spindle Pull Claw Four-petal Claw for Clamping Tool Holder

Name: SFX BT30/BT40/BT50/BT60 DIN40/50/60 CAT40 CAT50 External Thread CNC Spindle Pull Claw Four-petal Claw for Clamping Tool Holder
Brand: Luoyang Xincheng Precision Machinery Co.,Ltd
Availability: InStock
Rating: 5 (3 reviews)

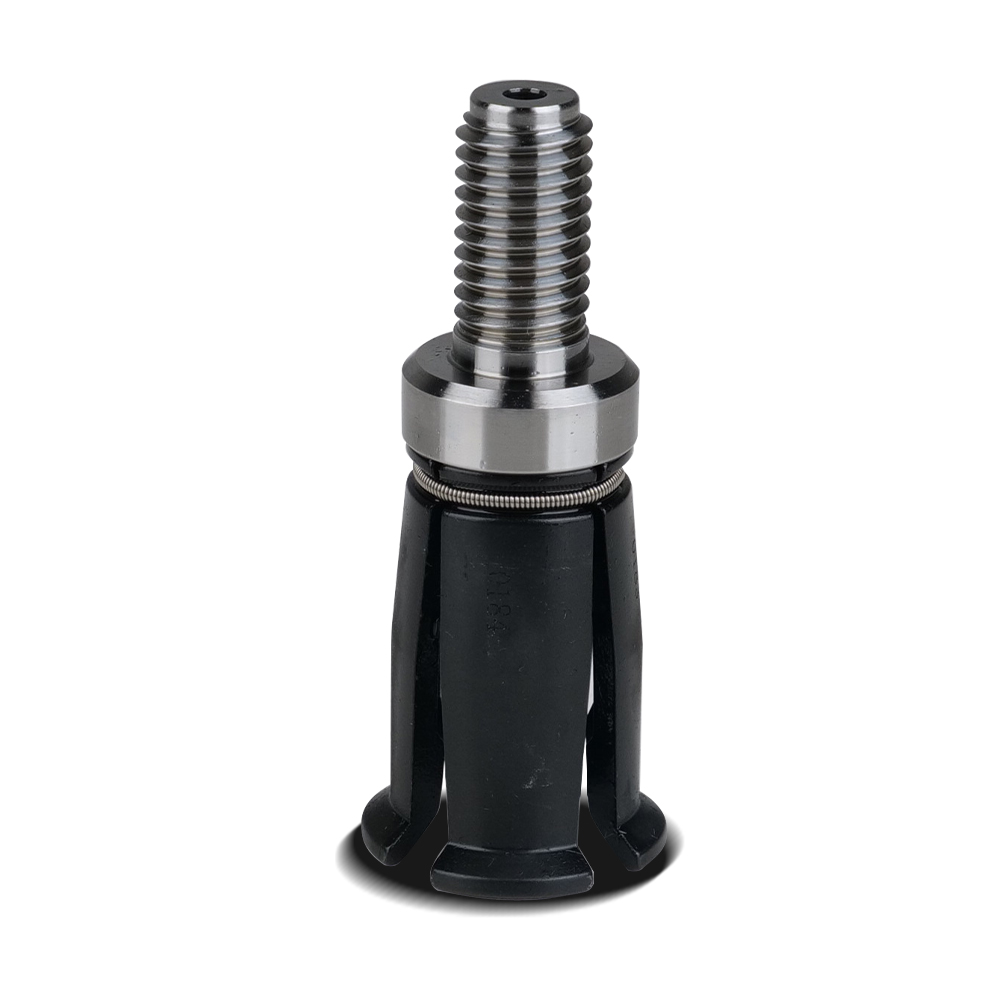

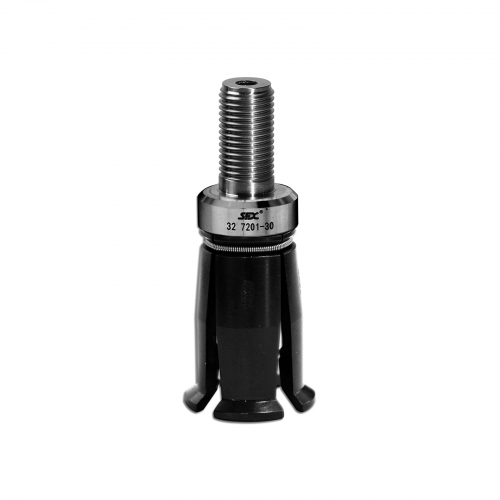

SFX BT CNC External Thread Spindle Pull Claw with Four Petal Claws
Models:
BT30-45°/60°/90°
BT40-45°/60°/90°
BT50-45°/60°/90°
BT60-45°/60°
DIN40
DIN50
DIN60
CAT40
CAT50

INQUIRY

Description

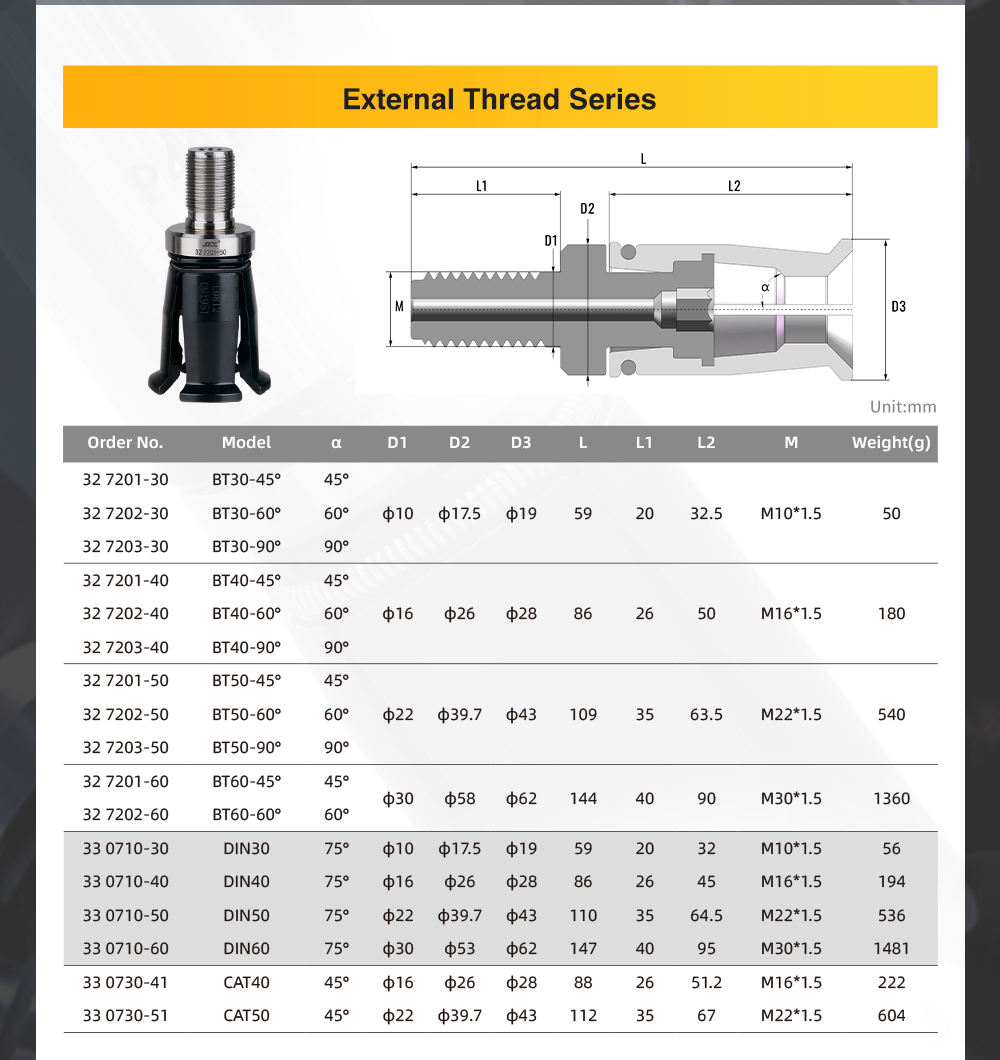

SFX BT30-45°/60°/90° BT40-45°/60°/90° BT50-45°/60°/90° BT60-45°/60° DIN40/50/60 CAT40 CAT50
Pull Claw External Thread suitable for all kinds of high and low speed spindle
Accept Customization and OEM

Features and Advantages:
1. Positioning function - The BT spindle pull claw has precision ground faces that allow it to be accurately indexed and positioned on the CNC milling machine spindle. This ensures the secure clamping of the tool holder for consistent machining results.
2. High speed capability - With a maximum speed of 12,000 RPM, BT spindle pull claws can withstand and perform at the high speeds necessary for demanding, high productivity milling operations.
3. Even clamping forces - The four-lobed claw design distributes clamping forces evenly for stability. This allows clamping tool holders with longer tapered shanks without instability or slippage. Different combinations of pull studs and claws enable adapting clamping forces to specific tool lengths and sizes.
4. Integral, durable construction - The BT spindle pull claw has an integral clamping unit suitable for both low and high spindle speeds.
5. High quality, affordable solution - The BT spindle pull claws produced by our factory provide consistent, dependable tool clamping for automation and high volume production. Our standardized design allows for cost-efficient mass production and ample supply at a stable, affordable cost to end-users.
